Fleck 5600SXT Water Softener: Everything You Need to Know Before You Buy

Hard water is one of those problems that sneaks up on you. You notice the white crust forming around your faucet handles. The soap that never quite lathers the way it should. The water heater that seems to be working twice as hard as it used to. If any of this sounds familiar, you are not alone. The majority of US households deal with hard water on some level, and many of them eventually land on the same solution: the Fleck 5600SXT.

This system has built a reputation over the years for being straightforward, reliable, and priced in a way that makes sense for real households. At AFW Filters, we carry the 5600SXT across multiple configurations and have helped thousands of customers nationwide get their water under control. So before you buy, here is what you actually need to know.

Also Read: Is AFW Filters the Best Choice for a Whole House Water Filter System?

What Is the Fleck 5600SXT?

The Fleck 5600SXT is a salt-based, whole-home water softener system built around a digital metered control valve. The brand name “Fleck” is manufactured by Pentair. The 5600SXT control head is so trusted that many other softener brands use it in their own systems, which says a lot about how it holds up over time.

The system works through ion exchange. Hard water passes through a resin tank filled with specially treated beads that attract and hold onto calcium and magnesium ions, the two minerals responsible for hard water problems. What comes out the other side is soft water that is easier on your pipes, your appliances, your skin, and your monthly utility bills.

What separates this model from older timer-based softeners is the "SXT" in the name of the digital metered control head. Rather than regenerating on a fixed schedule regardless of how much water you have actually used, the 5600SXT tracks your actual consumption and regenerates only when needed. That means less salt used, less water wasted, and a system that works with your household instead of on its own timetable.

Key Specs at a Glance

• Grain capacity options: 24,000 to 80,000 grains (most popular: 48,000 grains)
• Control type: Digital metered (demand-initiated regeneration)
• Flow rate: Up to 12 GPM for household use
• Resin type: 8% or 10% crosslink (10% recommended for chlorinated water supplies)
• Control valve warranty: 5 years
• Tank warranty: 10 years
• Memory backup: Up to 48 hours (retains settings during power outages)
• Display: Backlit LCD with touchpad controls
• Brine tank: Standard safety float included
• NSF-certified components

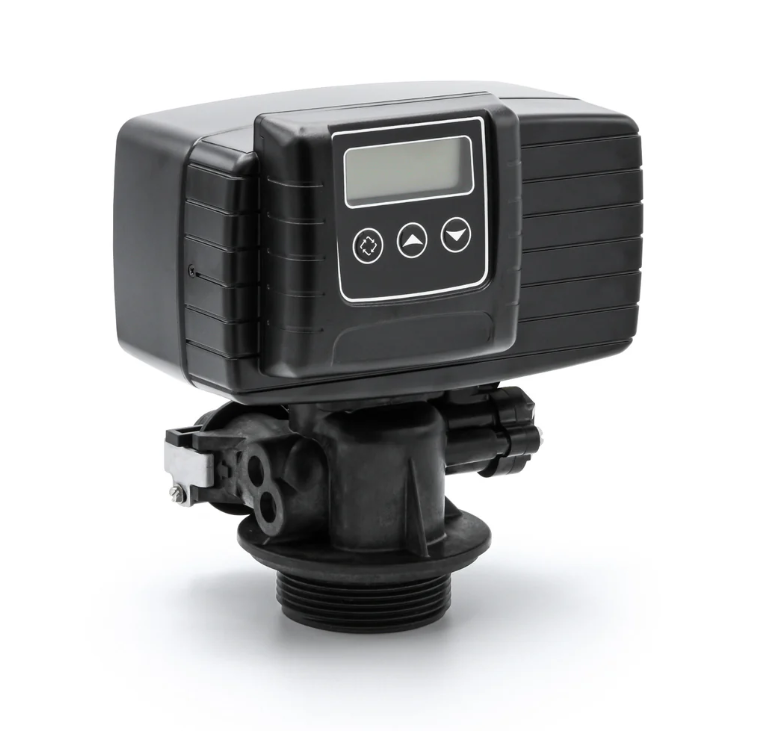

What the Digital Control Head Actually Does for You

The SXT control head is worth talking about on its own because it is genuinely one of the better-designed pieces of residential water treatment equipment available. Here is why it matters in practical terms:

• Demand-based regeneration. The system monitors exactly how many gallons have passed through and triggers a regeneration cycle only when the resin is approaching capacity. Compare this to a timer-based softener that regenerates every Tuesday at 2 AM, whether your family used 10 gallons or 1,000 that week, the metered approach consistently saves salt and water.
• Easy programming. The LCD touchpad walks you through the setup process clearly. You enter your water hardness level, household size, and salt dosage, and the system handles the rest. For first-time softener owners, this is a meaningful advantage over systems that require plumber-level knowledge to configure.
• Power outage protection. The built-in memory backup holds your settings for up to 48 hours, so a brief power interruption will not reset your configuration or throw off your softening schedule.
• Status visibility. At any point, you can check the display to see water flow, remaining capacity, time to next regeneration, and current settings. You are never left guessing about what the system is doing.

What a water softener with the  5600SXT Will and Will Not Fix

The Fleck 5600SXT is purpose-built for hardness removal. It pulls calcium and magnesium out of your water supply through ion exchange, which directly addresses the scale buildup that damages water heaters, dishwashers, and plumbing fixtures over time. It also handles low levels of dissolved iron, typically up to 1 ppm with standard resin, or somewhat higher with upgraded fine-mesh resin configurations.

What it is not designed to handle on its own: high iron concentrations, hydrogen sulfide (the rotten egg odor), sediment, bacteria, or chemical contaminants. For those issues, a dedicated pre-treatment filter such as an iron filter, air injection system, or carbon backwash filter needs to be paired with the softener. AFW Filters offers several combo packages that bundle the 5600SXT with a complementary filtration stage, which is often the most cost-effective approach for well water users dealing with multiple water quality problems at once.

Choosing the Right Grain Capacity

Getting the grain capacity right matters more than most buyers realize. Too small, and the system regenerates constantly, burning through salt and running up your water bill. Too large, and the resin sits idle between regenerations, which can lead to bacterial buildup over time.

A simple way to estimate what you need: multiply your household's daily water usage (roughly 75 gallons per person per day) by the hardness of your water in grains per gallon (GPG). That gives you the daily grain removal demand. Multiply by seven for a weekly total, since most systems are set to regenerate every seven days at a minimum.

As a general guide:

• 1–2 people with moderately hard water: 24,000–32,000 grains
• 3–4 people with average to hard water: 40,000–48,000 grains
• 4–6 people or very hard water: 64,000–80,000 grains

If you are unsure about your water hardness, a basic home test kit will give you a GPG reading quickly and inexpensively. The team at AFW Filters is also available by phone to help you work through the calculation before you order.

Why Buy the Fleck 5600SXT softener from AFWFilters?

AFWFilters Abundant Flow Water has been selling water treatment equipment since 1998. Based in Kansas and shipping across the US, we have spent over two decades focused on one thing: getting the right system to the right customer at a fair price and backing it up with genuine support.

A few things that set us apart when it comes to the Fleck 5600SXT specifically:

Superior product configuration. When you order a water softener from AFWFilters, you are getting a system assembled with quality in mind. We upgrade to 10% crosslink resin as the standard in many of our builds, a longer-lasting resin that holds up better in chlorinated municipal water supplies.

Competitive pricing verified. Customers consistently tell us they checked Amazon, Walmart, and the big box retailers before landing on AFWFilters and found our pricing lower.

Fast shipping. Orders typically ship within one business day. For a system that weighs over 100 pounds fully assembled, that turnaround matters, and we do it well.

Real technical support. Our team is reachable by phone (785-661-2241) or email (support@afwfilters.com) during business hours, Monday through Friday. If you have a question about sizing, installation, or troubleshooting, you will get a direct answer from someone who actually knows water treatment, not a scripted chatbot.

Combo package options. We offer the 5600SXT bundled with carbon backwash filters, pH neutralizers, iron filters, and upflow carbon systems, all at packaged prices that make more sense than buying separately.

Frequently Asked Questions

1. How often does the Fleck 5600SXT need to regenerate?

Because the 5600SXT uses demand-initiated regeneration, there is no fixed schedule. The system tracks your actual water usage and triggers a regeneration cycle when the resin has reached its treatment capacity.

2. Can the Fleck 5600SXT handle iron in my well water?

Standard resin configurations handle low levels of dissolved (ferrous) iron typically up to 1 ppm. AFW Filters also offers 5600SXT builds with fine mesh resin (iron pro) that can handle moderately higher iron levels.

3. What type of salt should I use in the 5600SXT brine tank?

Pellet salt or solar salt crystals are the most commonly recommended options. Salt pellets tend to produce fewer mushing and bridging issues, which can clog the brine tank over time.

4. Is the Fleck 5600SXT difficult to install?

Most homeowners with basic plumbing confidence handle the installation without outside help. The system ships with the resin pre-loaded, a bypass valve, and a clear installation manual.

5. How long does the Fleck 5600SXT last?

The Fleck control valve is backed by a 5-year manufacturer's warranty and is widely regarded as one of the most durable residential softener valves on the market. The tank carries a 10-year warranty. With proper maintenance, many users report these systems running reliably well beyond the warranty period.
